Automatic Mounted Mop Flap Wheel Making Machine

Basic Info.

Model NO.	KW-F-W-1
HS Code	8479509090
Production Capacity	30

Product Description

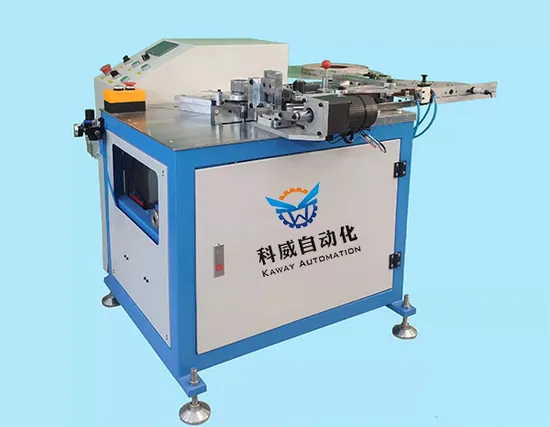

Automatically mounted mop flap wheel-making machine-one station
The function introduction
This machine is a new type of shaft flap wheel for our company. It adopts PIL automatic control, the features are a compact structure, reasonable design, and high production efficiency. The servo motor and PLC of this machine are all made by Delta, and the pneumatic components are AirTAC. The performance is stable and reliable, and it's easy to maintain.

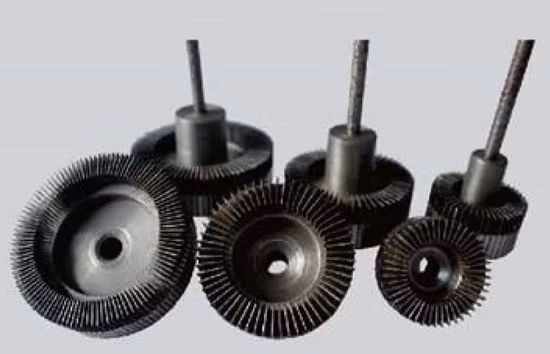

This machine adopts four heads, positioning, feeding, cutting, and arranging automatically, and high cutting precision. It can produce a shaft flap wheel with an outer diameter of 25-80mm and a height of 10-50mm (the number of blades can be customized, depending on the number of teeth of the steel mold).

Safety Precautions

1. Before starting the machine, which must be installed with a ground wire.
2. Do not touch the cutter with your hand or other objects after turning it on.
3. Repair of the machine must be powered off and maintained by a professional technician.
4. At the power-off state, setting the cutter, manually rotate the cutter to the closed state to observe if there is any obstacle in the operation of the cutter and if there is a collision between two cutters. Manually rotate the cutter without running obstacles and without collision within cutters, if like that machine can be turned on.
5. Do not place anything on the head.

Introduction to the operation panel function
1. Emergency stop: Urgency stop (E-STOP).
2. Start: it is used to start the machine to work automatically.(RUN)
3. Stop: Stop working.(STOP)
4. Manual or Automatic mode: switch between manual operating and automatic operating.
5. Pressing belt: Adjust the loosening and unloosening for the belt pressing wheel.
Feeding reversal: Adjust the rotated direction of the auxiliary feeding plate
Specifications :
Model: KW-F-W-1
Mounted flap wheel size: outer diameter 20-80mm , height 20-80 mm
Capacity: 2000-3000pcs/8hs , 5-10s/pcs speed adjustable
Power: 4KW 220V 50HZ single phase
Size: 1200mm*1000mm*1400mm
Weight: 450KG

What are the raw materials used?The main materials used in world-renowned electrical components. We can also make any custom design for you according to your needs.How long does it usually take for me to receive the equipment?Depends on whether you want to customization your abrasive or not, and also depends on the speed of customs clearance and logistics, but we can guarantee to ship the regular abrasive machines in less than 30 business days.Any benefits for the abrasive machine from China?In a word, China has a much better industry chain. There may be manufacturers of abrasive and packaging in India, Vietnam and Malaysia, but HG-Abrasive can guarantee that our prices can be on par with theirs and that our quality, and service far exceeds your expectations.When can I get an engineer from you?Contact our sales staff when you have completed the preparation conditions (water, electricity, air supply, production materials). We will send an engineer to install your machine and train your staff to use it. Usually, when you are ready, you can contact our sales staff and cooperate with us to get a visa for the engineer, who will arrive within 15 days.What about the details of the packaging?
To ensure the integrity and safety of product packaging, main products are packed in plastic film or export plywood boxes, and auxiliary products are packed in thick cartons.Do you provide customized services?We can design the machine according to your requirements (material, power, size, etc.). We will also provide you with expert guidance at the same time, based on our many years of experience in the industry.How will my machine be installed once it arrives? How much does it cost?We'll dispatch an engineer to your facility to assess the situation, install the machine and train your staff to operate it. The customer pays for round-trip airfare, accommodation, and USD100/day/person.Are you a manufacturing or a trading company?We are a factory, and we offer factory direct prices with excellent quality and worry-free service. Please come and see us here!What is your guarantee or warranty if we buy your machine?We offer you a 1-5 years warranty on our high-quality machines and lifetime technical support.
